5 Best PCB Manufacturing Processes for Global Buyers?
Choosing the right PCB manufacturing route can shape a product’s cost, reliability, and delivery schedule. For global buyers, the best option is rarely the cheapest quotation. A capable supplier must match the board design, production volume, certification needs, and target market. This guide examines five practical PCB manufacturing processes, from conventional subtractive etching to advanced HDI, flexible, and rigid-flex production.
A reliable pcb process begins with clear engineering communication. Buyers should review stack-up drawings, copper thickness, minimum trace widths, impedance control, surface finishes, and inspection methods. Factory experience matters here. A supplier that can explain solder-mask alignment, drill tolerances, and laminate behavior is easier to trust. Ask for sample reports, material certificates, process-control records, and evidence of testing against recognized IPC requirements. Small details matter. A poorly controlled via can weaken an otherwise excellent board.
The guide also considers prototypes, medium-volume orders, and large-scale production. Each situation demands different equipment and quality controls. A fast prototype house may not support stable mass production. Conversely, a high-volume factory may handle urgent design changes poorly. This distinction is often missed. Delivery distance, packaging, customs documentation, and after-sales communication can also affect the real purchasing outcome. No process is universally best. Even experienced buyers can overlook a hidden tolerance issue or underestimate inspection costs. Careful comparison, technical review, and realistic supplier audits help turn a promising PCB quotation into dependable production.
Selecting PCB Materials and Specifications for International Production
Selecting PCB materials and specifications is often more important than choosing a low production price. The wrong laminate can cause thermal stress, signal loss, or early field failure. Standard FR-4 suits many control boards, but high-speed designs may need a material with stable dielectric performance. For power circuits, thicker copper and a higher glass-transition temperature can improve reliability. Check copper weight, board thickness, surface finish, and impedance requirements together. They affect both performance and manufacturing cost.
The manufacturing process should match the product’s physical demands. Multilayer fabrication supports dense routing and controlled power distribution. HDI processing adds microvias for compact electronics. Flexible circuits handle repeated bending, while rigid-flex boards combine movement with structural support. Metal-core boards can move heat away from bright lighting or power components. Each route needs different design rules, drilling limits, and inspection methods. A practical specification should include layer count, minimum trace width, spacing, hole tolerance, and acceptable warpage.
International production also requires disciplined documentation. Provide complete Gerber or ODB++ files, a drill chart, stack-up details, and a verified bill of materials. Ask for a preproduction review before mass fabrication. Samples should receive dimensional checks, electrical tests, and visual inspection under consistent lighting. Moisture protection matters during long transport. I have seen small omissions create expensive delays, especially unclear surface-finish requirements. Some specifications also need revision after prototype testing. That is not failure; it is useful evidence. A reliable buyer leaves room for measured improvement, rather than treating the first drawing as final.
Using Conventional Subtractive Etching for Cost-Efficient PCB Fabrication

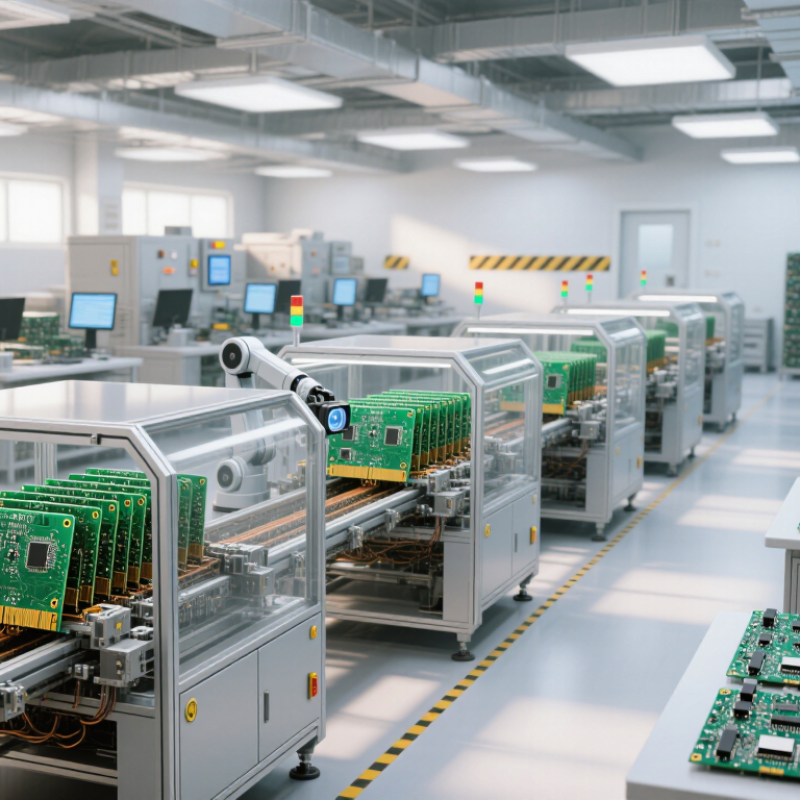

5 Best PCB Manufacturing Processes for Global Buyers?
Using Conventional Subtractive Etching for Cost-Efficient PCB Fabrication
Conventional subtractive etching remains a practical choice for global PCB buyers. A copper-clad laminate receives an imaging layer before unwanted copper is chemically removed. This mature workflow uses widely available equipment and supports stable volume production. It also handles common single-layer, double-layer, and multilayer designs. According to 2024 industry market assessments, global PCB revenue exceeded US$80 billion, while multilayer boards remained the largest product segment.
Cost pressure is real.
The savings come from process familiarity, material availability, and scalable production lines. However, buyers should not treat etching as automatically inexpensive. Etchant concentration, spray pressure, temperature, and copper thickness affect trace width and undercutting. A 35-micrometre copper layer may need different controls than a 70-micrometre layer. IPC design guidance stresses manufacturing tolerances, not just schematic accuracy.
IPC’s 2024 industry data also identified material costs and demand volatility as continuing production pressures. Request the factory’s etching tolerance, copper-thickness records, and cross-section samples.
Very useful.
Waste treatment also deserves attention, because spent etchant requires controlled handling under applicable environmental rules. I have seen low quotations fail after repeated dimensional corrections.
The cheapest estimate is not always the lowest total cost.
Applying Additive and Semi-Additive Methods for Fine-Line Circuitry
For global buyers, fine-line PCB production increasingly depends on additive and semi-additive methods.
In a conventional subtractive process, copper starts thick and is etched away. That approach can struggle when traces approach narrow widths. Semi-additive processing changes the sequence. A thin seed layer is deposited first. Imaging defines the circuit pattern. Copper then grows only where conductivity is required.
Less waste. Better control.
Additive methods can support fine geometries, tight spacing, and smoother trace edges.
These details matter in compact modules with dense component fields. From production experience, line width alone is not enough. Engineers should review dielectric thickness, copper uniformity, registration, surface roughness, and via alignment. A 50-micrometer target may look impressive on a drawing, yet production variation can reduce usable yield.
That gap is easy to underestimate.
Test coupons should represent the most difficult board areas, not an ideal corner.
Global sourcing also requires process evidence.
Ask for cross-section images, dimensional reports, solderability data, and documented inspection limits. Confirm how the supplier controls seed-layer adhesion and removes unwanted copper. Semi-additive processing is powerful, but it is not automatically cheaper or simpler. It may require tighter chemistry control, cleaner imaging, and more disciplined handling. The process is not flawless. Unexpected plating growth or contamination can still create opens and shorts.
A practical qualification plan should include pilot lots, thermal cycling, electrical testing, and a review of rejected panels.
That feedback often reveals weaknesses earlier than a polished capability sheet.
Building HDI Boards Through Sequential Lamination and Microvia Formation
5 Best PCB Manufacturing Processes for Global Buyers?
Building HDI Boards Through Sequential Lamination and Microvia Formation
High-density interconnect (HDI) boards rely on sequential lamination to add circuits in controlled layers. A typical build starts with a core, copper foil, dielectric material, and drilled through-holes. Each lamination cycle adds another circuit layer. Registration must remain precise throughout.
Microvias are usually formed with laser drilling. Their small diameter connects one layer to the next, saving valuable board space. After drilling, the holes require cleaning, copper deposition, and reliable plating. A rough microvia wall can create weak electrical connections. Small defects matter.
From practical production reviews, three controls deserve close attention: dielectric thickness, laser energy, and copper plating uniformity. Operators should inspect cross-sections, not only electrical test results. X-ray checks can reveal layer movement before final assembly. Process records should include temperature profiles, drilling parameters, and lot traceability.
Sequential lamination supports finer routing, but it increases cost and process sensitivity. Global buyers should request capability data for registration, microvia reliability, and thermal cycling. Ask how failures are analyzed. Clear answers build confidence.
Do not trust appearance alone.
A board may look perfect and still fail after repeated heating. Designers should also review stackup drawings with the manufacturer before release. One overlooked resin thickness can change impedance and mechanical stress. This process is advanced, but not forgiving. Continuous feedback remains essential.
Manufacturing Flexible and Rigid-Flex PCBs for Complex Product Designs
Flexible and rigid-flex PCBs support products that must bend, fold, or fit through narrow spaces. Their manufacturing requires more than standard board production. Designers and buyers should review five connected processes: material preparation, circuit imaging, etching, lamination, and drilling with plating. Each stage affects flexibility, electrical stability, and long-term reliability.
Manufacturers begin with flexible copper-clad materials and carefully control moisture, alignment, and surface cleanliness. Imaging transfers the circuit pattern, while etching removes unwanted copper. Laser drilling can create small openings, but poor energy settings may damage the dielectric layer. Plating then builds reliable connections through vias. Rigid-flex construction adds lamination pressure and temperature control. Uneven pressure can create wrinkles, voids, or stress near the bend area.
Design reviews should confirm bend radius, copper thickness, coverlay placement, impedance needs, and connector reinforcement. Keep rigid sections away from repeated folding zones. It helps to request cross-section samples, thermal-cycle data, electrical test records, and material traceability. International buyers also need clear inspection criteria and documented process changes. A perfect first build is rare. We have seen small layout assumptions become expensive tooling revisions. That lesson remains important. Flexible circuits often fail at transitions, not in the obvious center area. Careful prototypes, visual inspection, and mechanical bending tests expose these weaknesses before volume production.
5 Best PCB Manufacturing Processes for Global Buyers
Typical minimum trace-and-space starting points for complex rigid, flexible, and rigid-flex PCB designs. Smaller values support finer circuit features, but the final capability depends on stack-up, copper thickness, material selection, and fabrication tolerances.
Reference values are typical industry design starting points in mils and should be confirmed with the selected fabricator before production.
